Car Fuel Leak Detector with EVAP System Tester N981
Car Fuel Leak Detector with EVAP System Tester N981
*Easy to Use--It can be powered by the car’s battery, and Shop Air driven to increase duribility and ensure big smoke flow. It in quick smoke generation.
*Convenient Tool for Mechanics -- Fuel Leak Detector designed for detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, ATV, light trucks, boats;
*Specifications--Voltage: DC 12V. Smoke output pressure:0.5PSI. Smoke output volume: ＜8LPM. Smoke current: 6 AMP.
*Great Smoke Flow Control: Turn the red handle anti-clockwise to adjust the flow rate to a proper level
*Application-EVAP System, Gaskets & Fitting, Throttles Shafts, Catalytic Converters. Head & tail lamp housing, EGR valves, Hoses, Brake Booster, Central Locking System, Door & Windows seals, Oil Leaks…and more!
Special note:
While not in use, the red handle shall always be at the off position.
Features:
1.Uses shop air.
2.Nitrogen compatible.
3.Quick smoke generation.
4.Environment friendly and non-hazard smoke. 5.Smoke flow control
Instruction:
1. Mount the hook on to the unit
2. Mount the shop air adapter to the unit

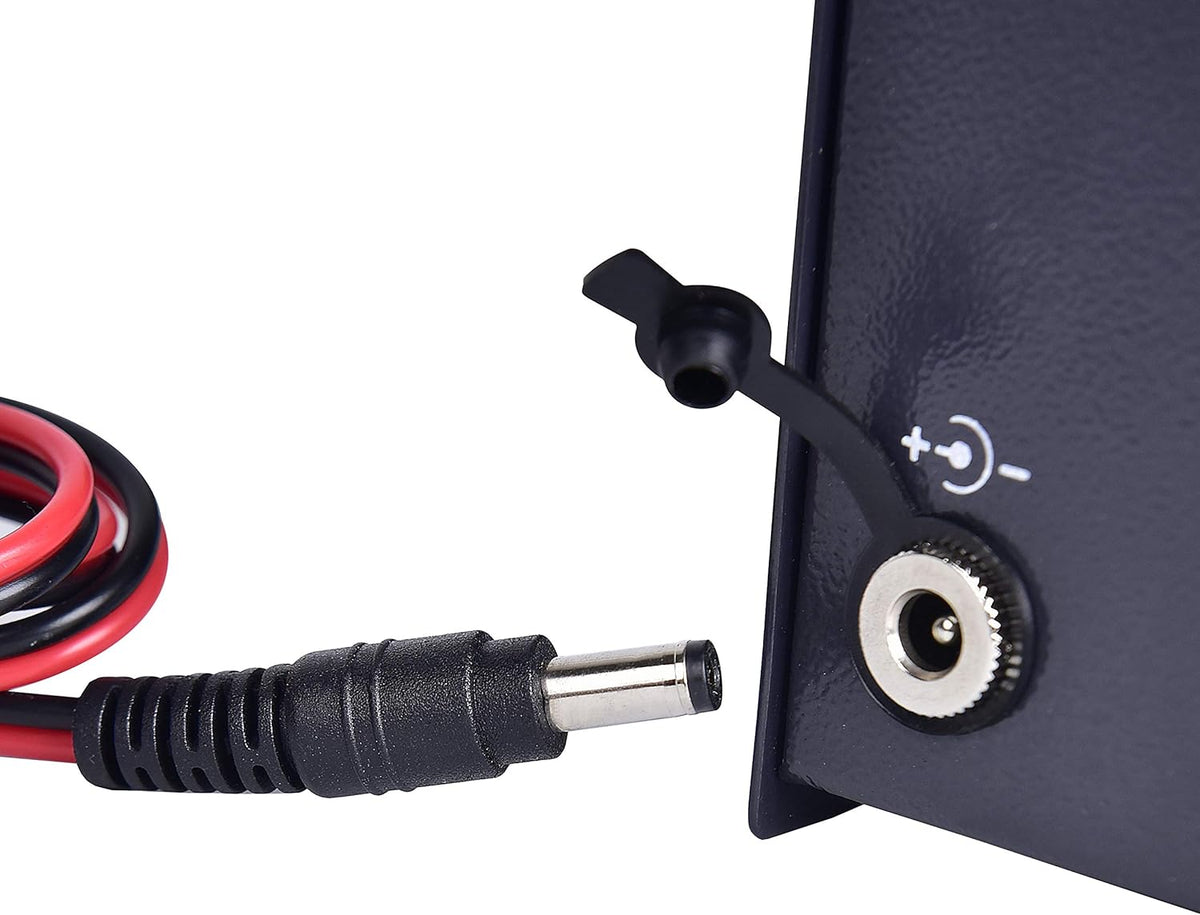

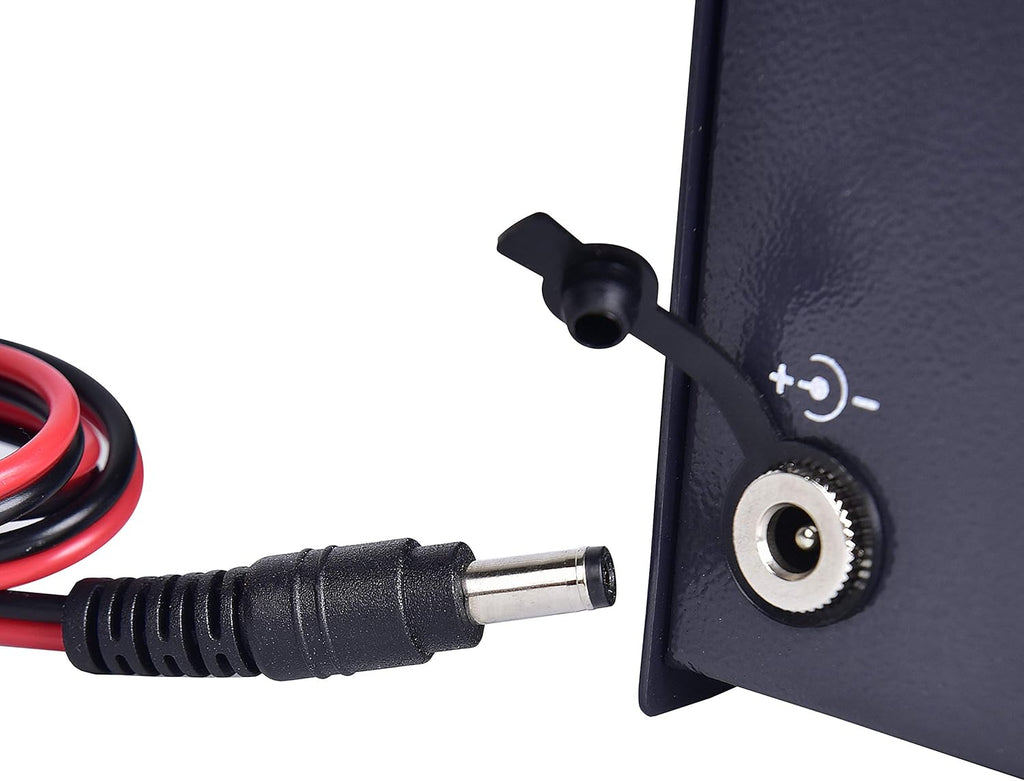

3.Plug the power cord into the socket
4. Screw on the smokehose to the unit
5.Fill ( mineral oil based ) smoke juice into the unit from the refill port on the top
6. Connect shop air supply
7. Connect 12V vehicle power supply then the unit will generate smoke
8. Turn the red handle anti-clockwise to adjust the flow rate to a proper level
Factor:
1.Output pressure:0.5PSI
2.Output Volume: ＜8LPM
3. Power Supplier: DC 12V
4. Current: 6AMP

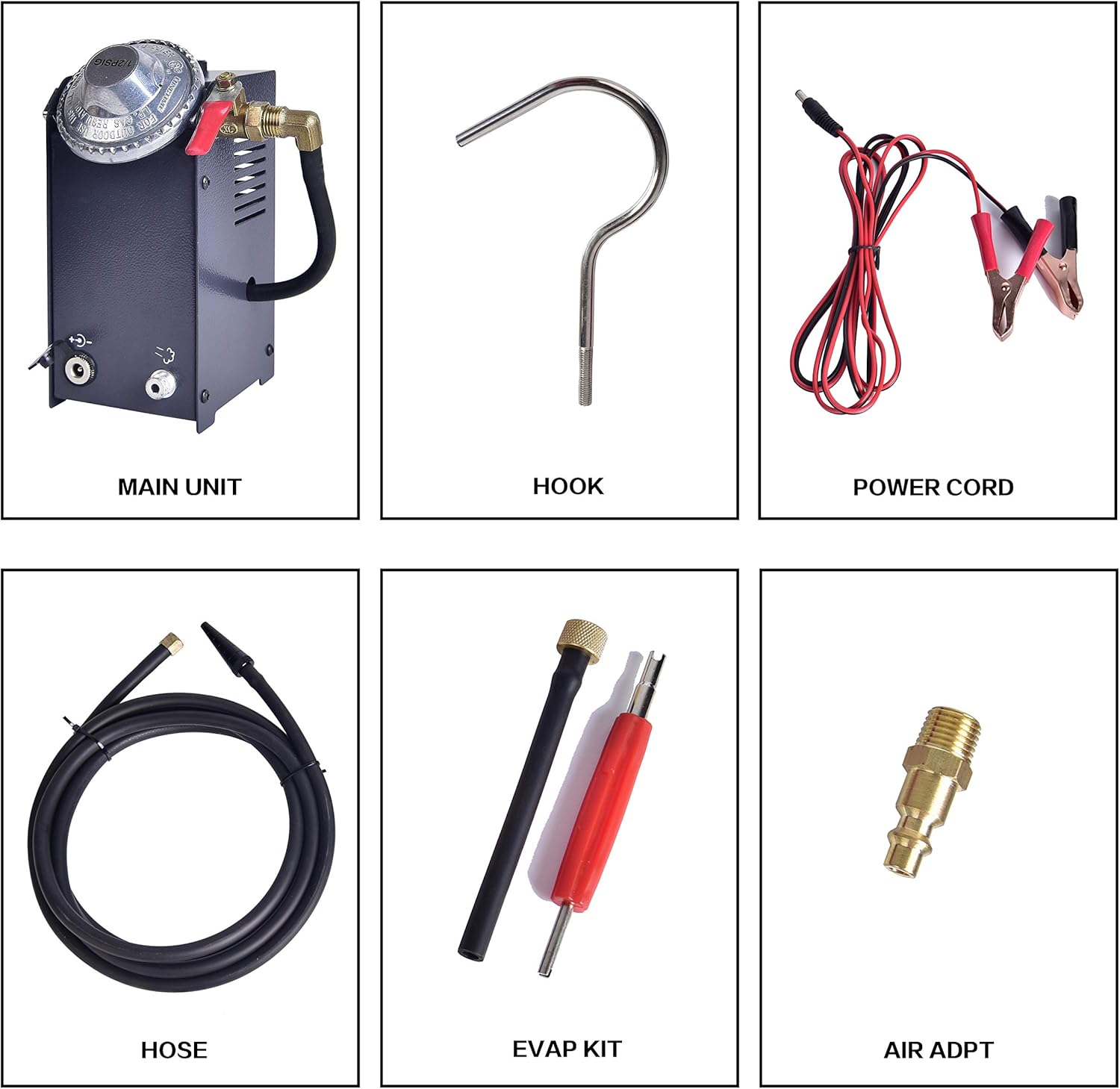

Package Includes:
1. 1 X Main Unit
2. 1 X Hook
3. 1 X Power Cors
4. 1 X Hose
5. 1 X EVAP Kit
6. 1 X Air ADPT
